Water softener & Ro plant

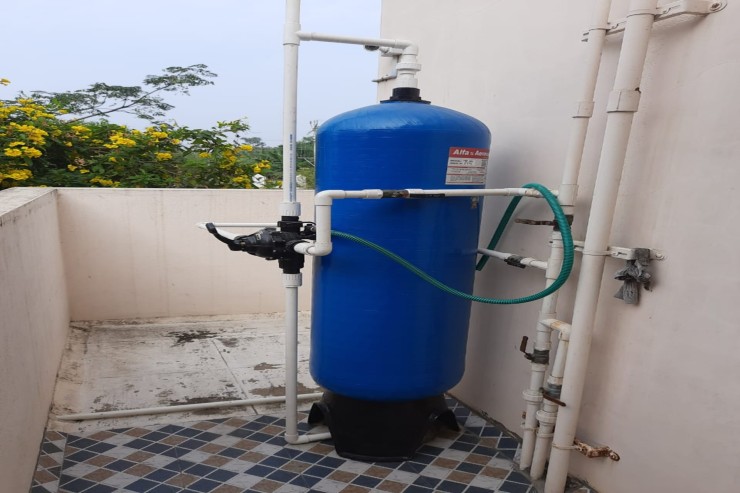

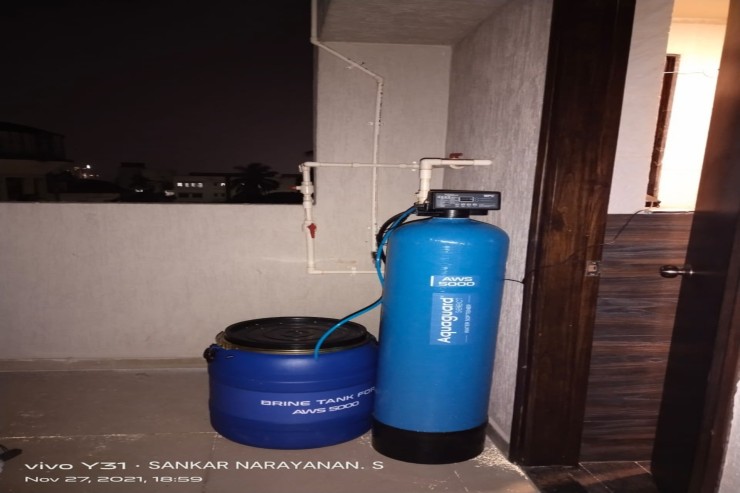

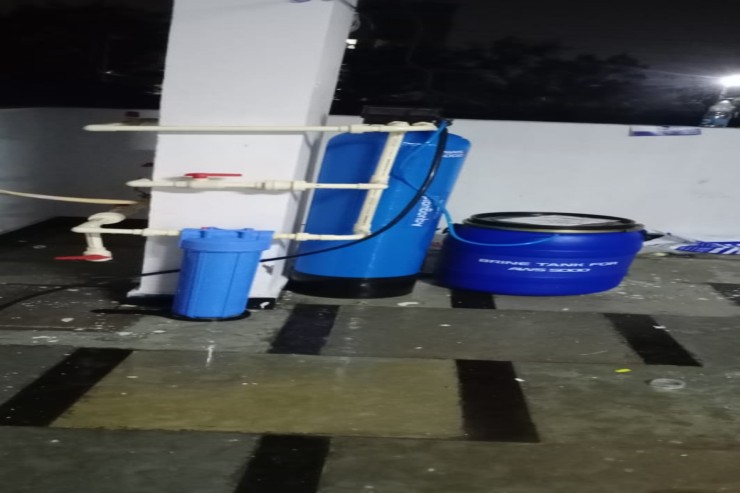

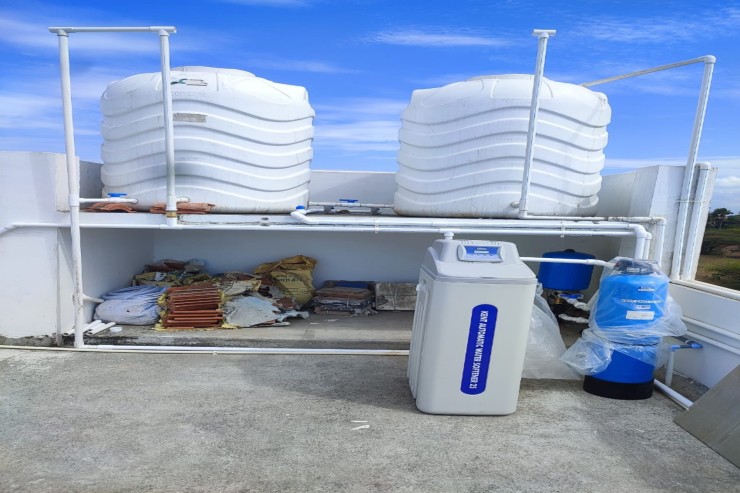

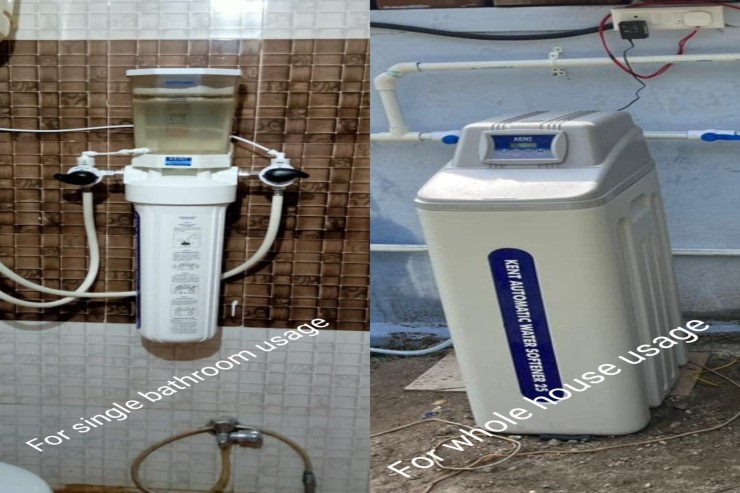

Water Softener

A water softener is a device designed to remove or reduce the concentration of calcium, magnesium, and other ions in hard water. Hard water contains high levels of these minerals, which can lead to scaling and mineral deposits in pipes, appliances, and fixtures. The primary purpose of a water softener is to exchange the calcium and magnesium ions with sodium ions through a process called ion exchange.

Here's a basic description of how a water softener works:

1. Ion Exchange Resin: The core component of a water softener is the ion exchange resin. This resin is charged with sodium ions. As hard water flows through the resin tank, calcium and magnesium ions are attracted to the resin and exchange places with the sodium ions.

2. Regeneration: Over time, the resin becomes saturated with calcium and magnesium ions, and the water softener enters a regeneration phase. During regeneration, a brine solution (a concentrated salt solution) is flushed through the resin tank, replacing the calcium and magnesium ions with sodium ions. The displaced minerals and excess brine are then flushed out of the system.

3.Softened Water Output: After regeneration, the water softner is ready to provide softened water again.The water passing through the resin task now has reduced levels of calcium and magnesium ions,making it "soft".

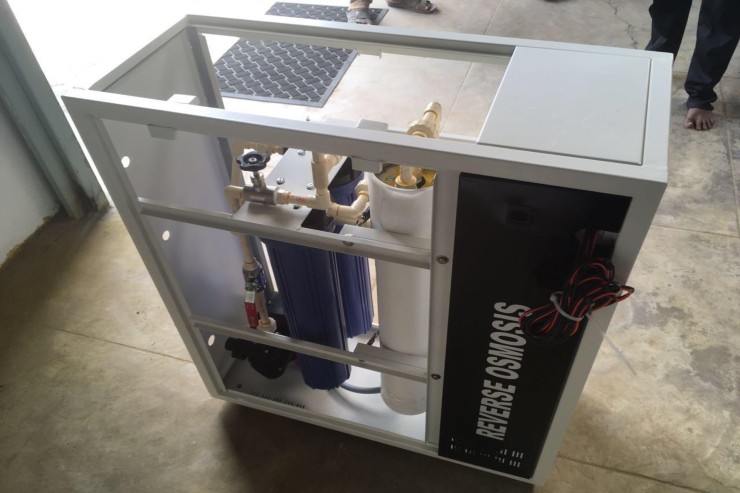

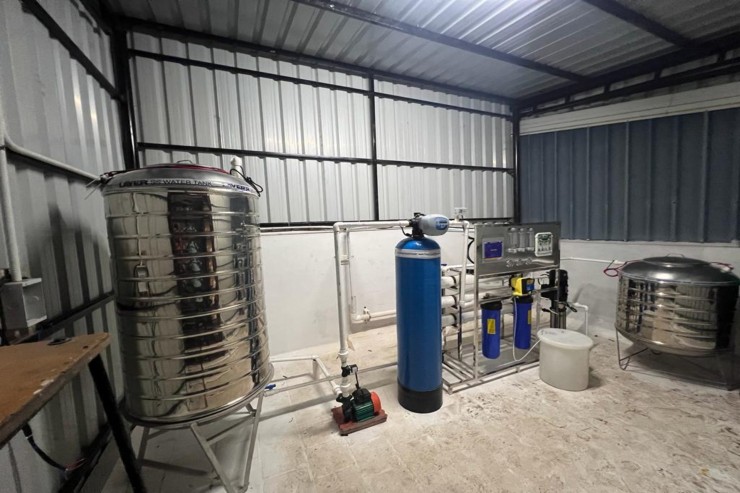

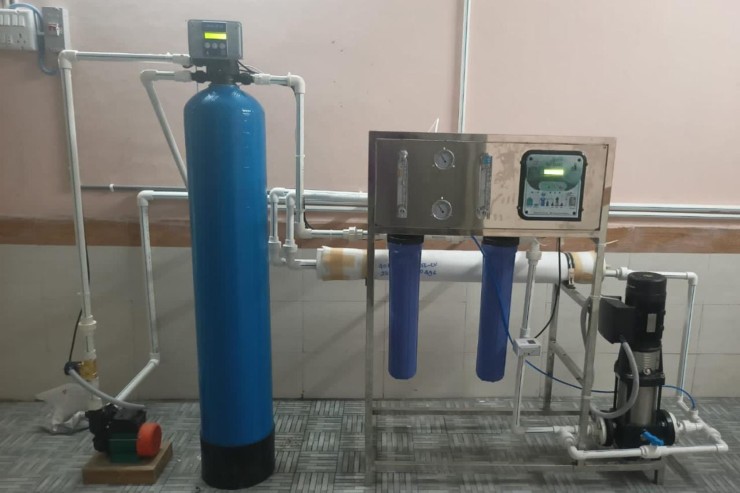

• Reverse Osmosis (RO) Plant:
• A Reverse Osmosis (RO) plant is a water purification system that employs the process of reverse osmosis to remove contaminants, impurities, and minerals from water. RO is an effective method for producing high-quality drinking water and is widely used in residential, commercial, and industrial settings.
• Here's an overview of the RO process in a water treatment plant:

1. Pre-Filtration: Before entering the RO membrane, water goes through pre-filtration to remove larger particles, sediment, and impurities. This helps prevent damage to the RO membrane.

2. Reverse Osmosis Membrane: The heart of the RO system is the semi-permeable membrane. Water is forced through this membrane under pressure, allowing only water molecules to pass through while blocking contaminants such as salts, minerals, and other impurities.

3. Post-Filtration: After passing through the RO membrane, the water undergoes post-filtration to further remove any remaining particles and improve water quality.

4. Product Water Storage: The purified water, often called permeate or product water, is collected in a storage tank for distribution.

5. Reject Water Disposal: The concentrated water containing the rejected impurities, known as brine or reject water, is typically discharged or directed for other purposes, ensuring the RO system remains effective.

RO plants are commonly used for desalination, producing drinking water, and various industrial applications where high-purity water is required.

Both water softeners and RO plants play crucial roles in improving water quality for specific purposes, addressing different water quality challenges.
